Home / Learner /Learner Approved Motorcycles (LAMS) / 2023 KLX230SM

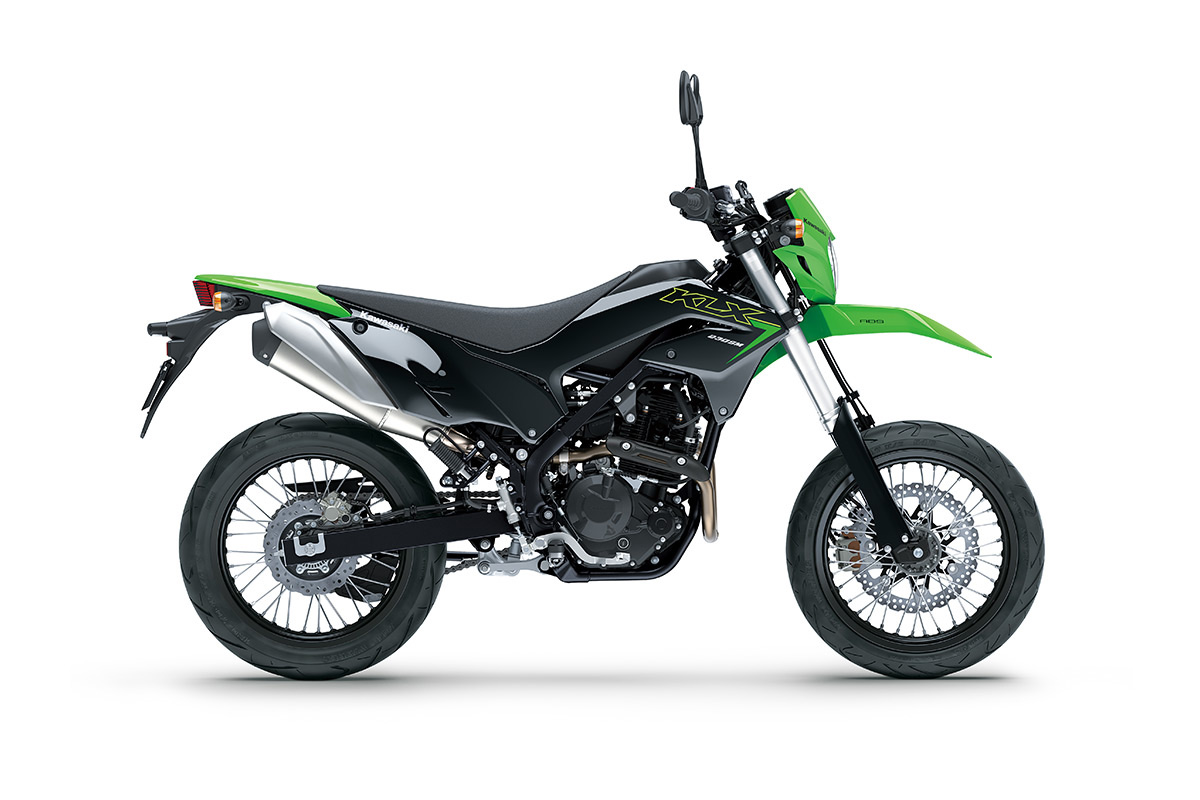

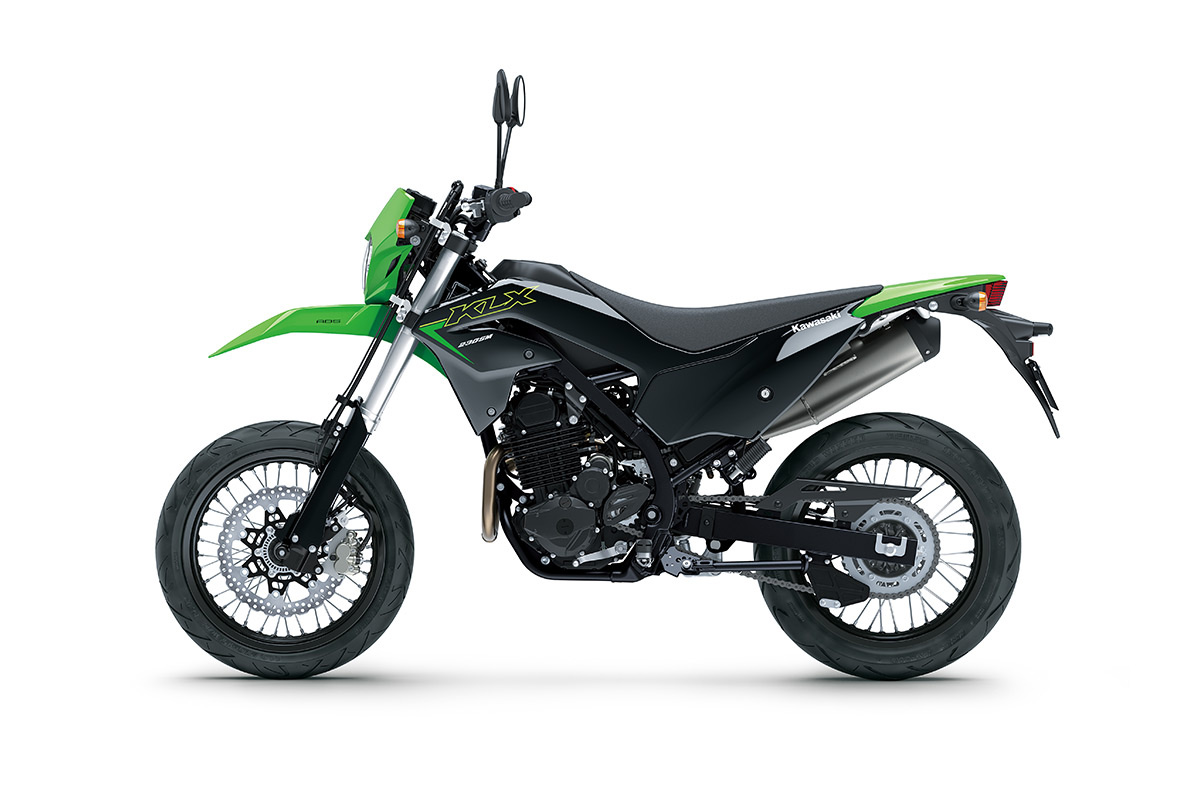

2023 KLX230SM

kawasaki-2023-klx230sm

Kawasaki 2023 KLX230SM for Sale at Ultimate Kawasaki Springwood in Springwood, QLD | Specifications and Review Information

GET OUT AND PLAY

Turn up the fun on the streets with this supermoto. Every trip is an experience when you ride through the city sporting a quick-revving engine and nimble handling. Be quick to steal the scene with equal parts performance and attitude.

FEATURING:

  • 233 cc FUEL-INJECTED, AIR-COOLED, FOUR-STROKE SINGLE WITH ELECTRIC START
  • SUPERMOTO-TUNED LONG-TRAVEL SUSPENSION
  • 17" FRONT & REAR WHEELS WITH ROAD TYRES

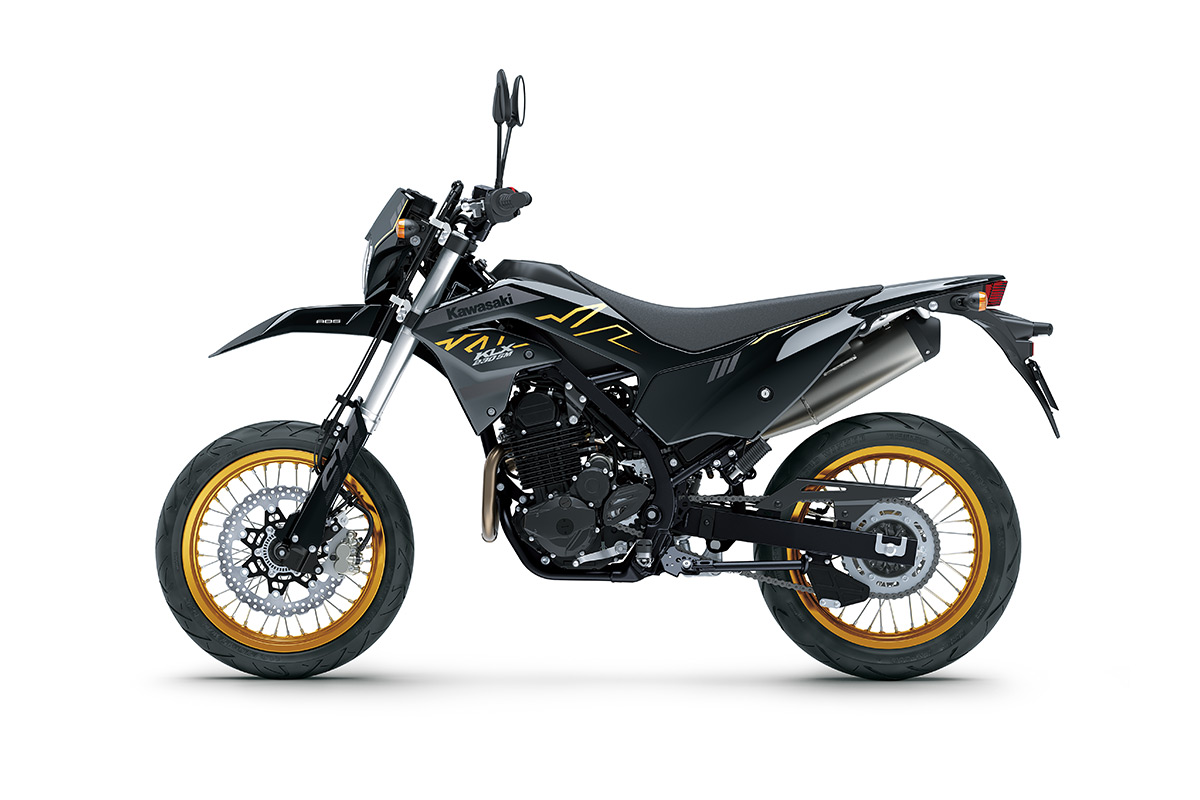

2023 Kawasaki KLX230SM

ALL ATTITUDE. NO APOLOGIES.

The aggressive supermoto-inspired bodywork, finishes, and components on the KLX230SM supermoto motorcycle deliver performance and attitude.

2023 Kawasaki KLX230SM

LED HEADLIGHT

The modern LED headlight and sporty front fender, matched to the 17-inch front wheel, add to the aggressive supermoto image.
2023 Kawasaki KLX230SM

DIGITAL DISPLAY

From the cockpit, an all-digital instrument panel offers at-a-glance information thanks to a large, easy-to-read LCD screen.
2023 Kawasaki KLX230SM

ELECTRIC START & FI

Electric start offers easy starting while fuel injection offers reliability in a wide range of conditions and contributes to improved fuel economy.
2023 Kawasaki KLX230SM

POWER CHARACTER

Smooth power delivery and crisp throttle response help riders of all skill levels manoeuvre through stop-and-go city traffic.

2023 Kawasaki KLX230SM

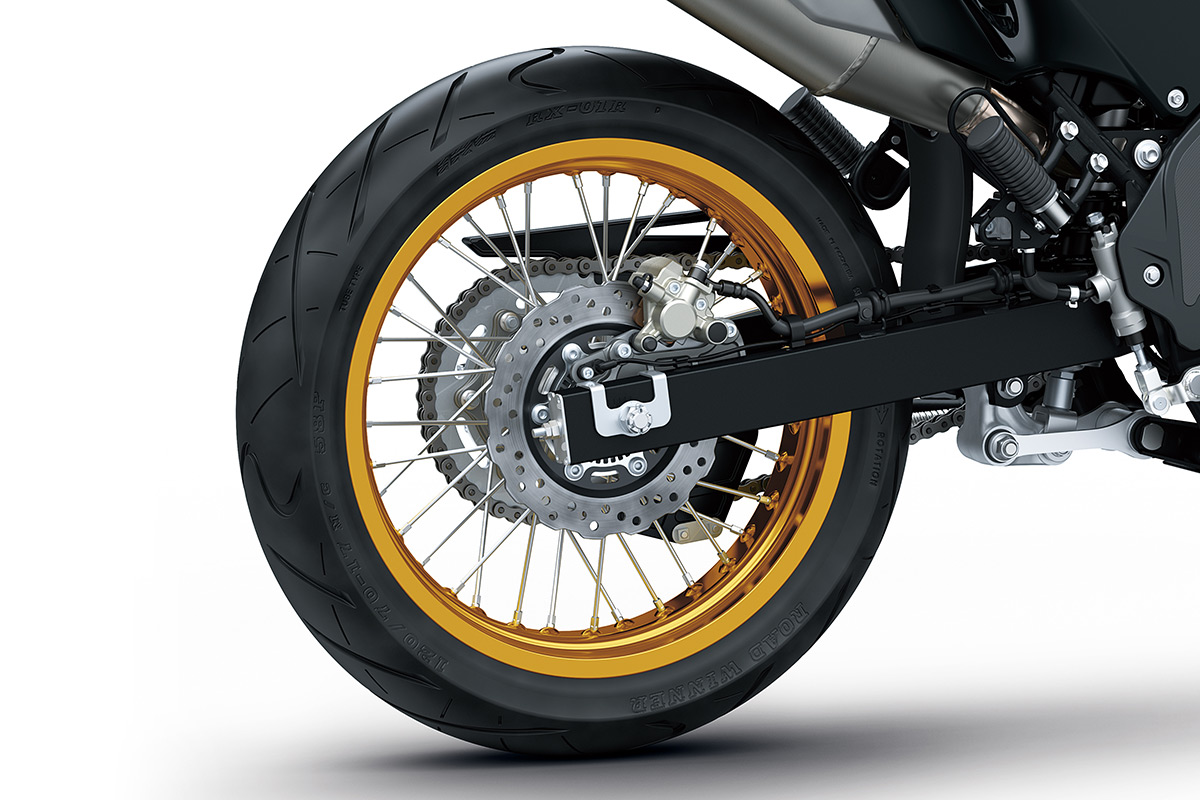

WHEELS

The 17-inch wheels, road tyres, and short wheelbase add agility to the quick handling package.
2023 Kawasaki KLX230SM

SUSPENSION

Suspension performance offers 204 mm of travel up front and 168 mm in the rear. The ø37 mm inverted front fork contributes to supermoto styling as well as front-end rigidity. The Uni Trak rear suspension provides great bump absorption and gives the bike a planted feel.
2023 Kawasaki KLX230SM

BRAKES

Substantial braking power is provided by a large ø300 mm semi-floating petal disc and twin-piston caliper up front and a ø220 mm petal disc and single-piston caliper rear brake package.
2023 Kawasaki KLX230SM

SEAT HEIGHT

A low 845 mm seat height allows riders to comfortably reach the ground at stops for increased confidence.

Not all colours shown available in Australia

Maximum Power 14.0 kW {19 PS} / 7,600 rpm
Maximum Torque 19.8 Nm {2.0 kgfm} / 6,100 rpm
Engine 4-stroke Single
Displacement 233 cc
Bore x Stroke 67.0 x 66.0 mm
Compression Ratio 9.4:1
Valve System SOHC, 2 valves
Fuel System Fuel injection: ø32 mm x 1
Ignition Digital
Starting Electric
Cooling Air-cooled
Lubrication Forced lubrication, wet sump
Transmission 6-speed, return
Primary Reduction Ratio 2.871 (89/31)
Gear Ratio: 1st 3.000 (39/13)
Gear Ratio: 2nd 2.067 (31/15)
Gear Ratio: 3rd 1.556 (28/18)
Gear Ratio: 4th 1.261 (29/23)
Gear Ratio: 5th 1.040 (26/25)
Gear Ratio: 6th 0.852 (23/27)
Final Reduction Ratio 3.071 (43/14)
Clutch Wet multi-disc, manual
Final Drive Chain
Frame Perimeter, high-tensile steel
Front Suspension ø37 mm inverted fork
Rear Suspension New Uni Trak with adjustable spring preload
Front Wheel Travel 204 mm
Rear Wheel Travel 168 mm
Rake 26.5°
Trail 86 mm
Steering Angle (L/R) 45° / 45°
Front Tyre 110/70-17M/C 54P
Rear Tyre 120/70-17M/C 58P
Front Brake/s ø300 mm semi-floating petal disc
Front Caliper/s Twin-piston
Rear Brake ø220 mm petal disc
Rear Caliper Single-piston
Dimensions (LxWxH) 2,050 x 835 x 1,120 mm
Wheelbase 1,375 mm
Road Clearance 230 mm
Seat Height 845 mm
Curb Mass 135 kg
Fuel Capacity 7.5 litres
Model Code KLX230RPFAN (Colour - Ebony)
Model Code KLX230RPFNN (Colour - Lime Green)

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner's Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.

Specifications subject to change.
