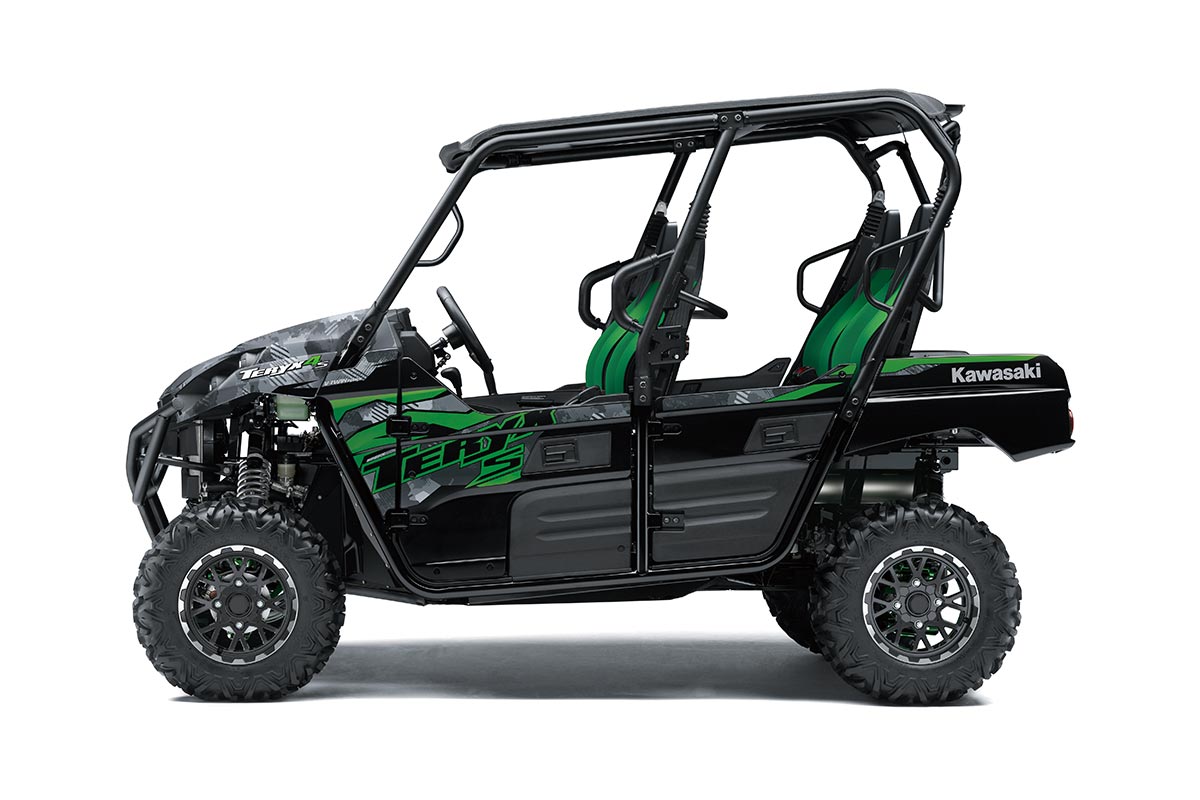

2025 TERYX4 S LE
Kawasaki 2025 TERYX4 S LE for Sale at Ultimate Kawasaki Springwood in Springwood, QLD | Specifications and Review Information
YOUR WORLD. YOUR ADVENTURE.
Eager for action, the four-passenger Teryx4 side x side is built to tackle tough trails. With the perfect combination of rugged sport performance and capability, the Teryx4 is made to conquer the outdoors with the entire crew on board. Take adventure to the next level with extra features only found on the Teryx4 S models.
FEATURING:
- 783 cc V-TWIN ENGINE
- SPEED-SENSITIVE ELECTRIC POWER STEERING (EPS)
- FOX LSC PIGGYBACK SHOCKS
- ROOMY SEATING FOR 4
- KAWASAKI STRONG 3-YEAR LIMITED WARRANTY
Cypher Camo Gray (Matte) / Super Black
Teryx4 side x sides are built to dominate the most demanding trails with a 783 cc engine, steel tube frame, and seating for up to 4 passengers.
DURABILITY
From the reinforced steel frame to the protective front brush guards, Teryx4 side x sides are built strong inside and out.
FRAME
Teryx4 side x sides are built around a double-X steel tube frame, welded strong to ensure maximum rigidity.
BRAKES
Sealed rear wet brake delivers strong braking performance and requires almost no maintenance.
BRUSH GUARD
An all-steel front brush guard helps protect bodywork.
POWER
The four-stroke, fuel-injected, 783 cc engine of Teryx4 side x sides work in unison with a Continuously Variable Transmission (CVT) to produce smooth and consistent power over rugged terrain.
Model may not be exactly as shown
ENGINE
V-twin fuel-injected 783 cc engine produces the power necessary to take on challenging terrain. Strong low- and mid-range torque helps you muscle through the toughest trails.
TRANSMISSION
Power delivery is instant thanks to the automatic Continuously Variable Transmission (CVT) and centrifugal clutch. Precise throttle response means confident driving, while automatic engine braking is key in managing challenging descents.
PERFORMANCE
Teryx4 side x sides are ready to take on all challenges with strong power, agile handling, and a host of modern features for a capable, exhilarating ride.
Model may not be exactly as shown
TURNING RADIUS
A tight 5.4 m turning radius and Electric Power Steering (EPS) allow you to easily take on narrow trails.
Model may not be exactly as shown
SUSPENSION
For demanding terrain that requires high-performance suspension components, Teryx4 side x sides are equipped with independent A-arms and premium FOX LSC Piggyback Shocks (coil-over, front and rear). Longer-travel shock units with revised suspension settings on the S model contribute to increased ride comfort and improved ground-following ability.
BRAKES
Teryx4 side x sides come equipped with dual front disc brakes that pack the stopping power needed to confidently take on the toughest trails.
CHASSIS
With wheels placed further apart than on standard Teryx4 models (thanks to a wider tread and longer wheelbase on the S-model), ground disturbances have less of an effect on the cabin, contributing to increased ride comfort and a more composed ride.
COMFORT & CONVENIENCE
Conquer the outdoors with thoughtful convenience features that will make your weekend adventures more enjoyable.
Model may not be exactly as shown
COCKPIT
Teryx4 side x sides feature stadium-style seating with plenty of head, shoulder and leg room. Adjustable tilt steering wheel conforms to your specific needs while automotive-style doors provide easy in/out access and added protection from external debris.
MULTIFUNCTION DIGITAL DISPLAY
Dash-mounted multifunction digital display meter provides convenient vehicle information at a glance, including total distance traveled, water temperature, and low-oil pressure indicators.
ELECTRIC POWER STEERING
Speed-sensitive Electric Power Steering (EPS) enhances performance by offering added assistance at lower speeds and great feedback at higher speeds. Drive with confidence knowing the EPS provides precise steering, smooth feel, and predictable operation to help get you where you want to go.
Non-current colour shown
ADDITIONAL VEHICLE FEATURES:
• Long-travel suspension
• Wide tread width
• Long high-clearance A-arms
• Maxxis Bighorn tyres
• Double-X steel tube frame
• Additional DC outlet in rear
• 4 LED headlights
• Sun top
• 14-inch aluminium wheels
Images shown for marketing purposes only. Images of accessorised models may differ from actual models sold.
| Maximum Power | 43 kW {58 PS} / 6,750 rpm |
| Maximum Torque | 64 Nm {6.5 kgfm} / 5,500 rpm |
| Engine | 4-stroke 90° V-Twin |
| Displacement | 783 cc |
| Bore x Stroke | 85.0 x 69.0 mm |
| Compression Ratio | 10.7:1 |
| Valve System | SOHC, 4 valves per cylinder |
| Fuel System | Fuel injection: ø36 mm x 2 |
| Ignition | Battery & coil (transistorised ignition) |
| Starting | Electric |
| Cooling | Liquid-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual range CVT with centrifugal clutch and reverse |
| Primary Reduction Ratio | 2.788 ~ 0.725 (belt converter) |
| Gear Ratio: Forward (High) | 3.279 (28/26 x 30/19 x 27/14) |
| Gear Ratio: Forward (Low) | 5.553 (31/17 x 30/19 x 27/14) |
| Gear Ratio: Reverse | 4.568 (16/12 x 18/16 x 30/19 x 27/14) |
| Final Reduction Ratio: Front | 4.375 (35/8) |
| Final Reduction Ratio: Rear | 4.400 (44/10) |
| Final Drive | 2WD/4WD, shaft |
| Frame | Double-X reinforcement type, tubular carbon steel |
| Front Suspension | Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping |
| Rear Suspension | Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping |
| Front Wheel Travel | 272 mm |
| Rear Wheel Travel | 254 mm |
| Steering | Rack and pinion with Electric Power Steering |
| Rake | 7° |
| Trail | 39 mm |
| Steering Angle (L/R) | 37° (IN) / 32° (OUT), 37° (IN) / 32° (OUT) |
| Front Tyre | MAXXIS Bighorn 2.0 27 x 9R14 6PR |
| Rear Tyre | MAXXIS Bighorn 2.0 27 x 11R14 6PR |
| Front Brakes | Dual ø200 mm discs |
| Front Calipers | Two-piston |
| Rear Brake/s | Enclosed wet multi-plate |
| Parking Brake | Enclosed wet multi-plate |
| Dimensions (LxWxH) | 3,185 x 1,590 x 2,045 mm |
| Wheelbase | 2,240 mm |
| Road Clearance | 285/310 mm (standard/max preload) |
| Seat Height | 865 (F) / 930 (R) mm |
| Curb Weight* | 743 kg |
| Fuel Capacity | 30 litres |
| Tread Front / Rear | 1,400 mm / 1,330 mm |
| Turning Radius | 5.4 m |
| Cargo Bed Dimensions (LxWxH) | 455 x 1,210 x 220 (F) / 125 (R) mm |
| Cargo Bed Capacity | 113 kg |
| Seating Capacity | 4 |
| Vehicle Load Capacity | 499 kg |
| Towing Capacity | 590 kg |
| Lighting | 4x LED headlights |
| Model Code | KRT800JSFAN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner's Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
